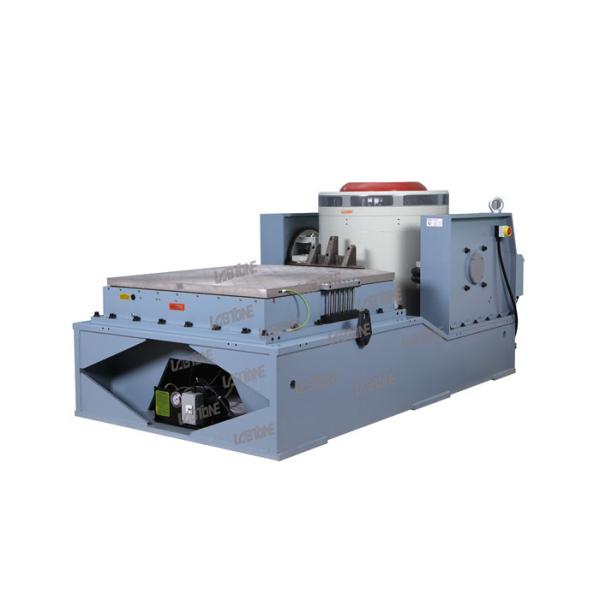

Large Displacement Electromagnetic Vibration Testing Equipment For Three Axis Shaker Test

  • 1
  • 2

Brand Name : LABTONE

Model Number : EV450

Certification : CE / ISO

Place of Origin : Dongguang, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 45 Working Days

Packaging Details : Plywood Case with Vacuum Packing

Sine Force Peak : 50 kN (5000 kg.f)

Max Acceleration : 71 g

Max Velocity : 250 cm/s

Frequency Range : 2-2500 Hz

Max Displacement : 100 mm

Power Supply : 3-phase AC 380V / 50Hz

Contact Now

Large Displacement Electromagnetic Vibration Test Table Equipment For Three Axis Shaker Test

Working Principle:

Large Displacement Electromagnetic Vibration Testing Equipment For Three Axis Shaker Test

Specifications: EV340-EV450

Model EV340 EV350 EV420 EV430 EV440 EV450
Vibration Generator VG4000/76 VG5000/76 VG2000/100 VG3000/100 VG4000/100 VG5000/100
Frequency(Hz) 2-2500 2-2500 2-3000 2-2500 2-2500 2-2500
Max Exiting Force(kg.f) 4000 5000 2000 3200 4000 5000
Max. Displacement (mmp-p) 76 76 100 100 100 100
Max. Acceleration(g) 80 100 90 71 66 71
Max. Velocity(cm/s) 200 200 200 250 250 250
Payload(kg) 1000 1000 500 500 800 1000
Armature Mass(kg) 50 50 23 45 60 70
Armature Diameter(mm) φ440 φ440 φ320 φ400 φ445 φ445
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 3500 3800 2000 3200 4200 4500
Vibration Generator Dimension L*W*H(MM) 1100*1300*1520 1100*1300*1520 850*1000*1100 1100*1300*1440 1100*1300*1520 1100*1300*1520
Power Amplifier Amp55k Amp70k Amp25k Amp40k Amp60k Amp70k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 800 900 550 600 800 900
Power Amplifier Dimension L*W*H(MM) 800*550*1920 800*550*1920 800*550*1920 800*550*1920 800*550*1920 800*550*1920
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 80 90 45 64 85 85

Vibration Test Equipment

The purpose of vibration testing is to make a series of controllable vibration simulation in lab, no matter generated by natural or man-made vibration environment; such as waves, tidal flaps, wind, earthquake or rain and so on. It is to test if the product is capable of sustaining the vibration environment exerted from transporting or usage along its effective life cycle; and certify the standard of design & functional requirement of product. The value of vibration testing is to confirm the reliability of products and effectively screen out the bad products in factory; avoiding damages occurred at arrival; and to assess the failure analysis on the non-performing products; expecting to reach a high standard, high-reliability products. The vibration test stresses on the continuity and fatigue; and contributes to the understanding of product’s status under vibration circumstance in a normal environment; and avoids the product’s unpredictable damage caused under certain vibrating frequency for a long time.

We understand that test requirements constantly change and equipment must be versatile in its application. That is why the engineers at LABTONE offer such a wide choice of options and accessories. We are here to help and respond to a customers needs.

  • Load attachment inserts with Metric and American threads
  • PCD insert patterns to match existing jigs and fixtures
  • Armature frames in Magnesium or Aluminium
  • Motorized Shaker Body Rotation System
  • Enclosed Air Inlet and Outlet Ducts
  • Air Isolation Mounts
  • Air Glide Casters
  • Unibase Slip Tables
  • Standalone Slip Tables
  • Slip Tables to any Size and Shape
  • Additional BT Series journal bearings
  • Thermal Barriers for use with Climatic Chambers
  • Slip Plates in Magnesium or Aluminium
  • Gun Drilled Slip Plates for low temperature applications
  • Head Expanders and Vertical Support Platforms
  • Customized Fixtures -Cube, L type and T type
  • Auxiliary Interlock Unit for additional safety Interlock
  • Remote Control Panel via RS485 data communication

CNC processing ​:

Large Displacement Electromagnetic Vibration Testing Equipment For Three Axis Shaker Test

Product Image

Large Displacement Electromagnetic Vibration Testing Equipment For Three Axis Shaker Test
