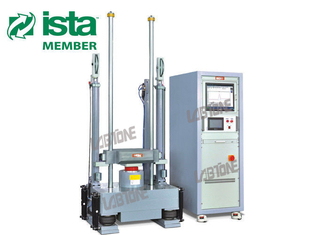

Shock Test System For Battery And Electronics With Payload 30kg Meet ISTA Standard

  • 1
  • 2
  • 3

Brand Name : Labtone

Model Number : SKT100

Certification : CE, ISO,ISTA

Place of Origin : Dongguan,China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 15 Sets Per Month

Delivery Time : 30-35 working days

Packaging Details : Plywood Case with Vacuum Packing

Table Size : 500 mm x 600 mm

Shock Pulse : Half Sine Wave,Saw-tooth Wave,Square Wave

Acceleration Range : Half Sine 600g,Saw-tooth 100g,Square 100g

Specimen Max Weight(kg) : 100kg

Pulse Duration Range(ms) : Half Sine 30ms,Saw-tooth 18ms,,Square 12ms

Highlight : Shock And Drop Testing, Mechanical Testing Equipment,,High Acceleration shock tester

Contact Now

Product Description

Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. To do a boundary assessment on complete product breakage, industrial standard shock pulse or company’s internal standards, we can provide the most advanced shock test system to meet your application requirements.

Suitable shock tests for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.

By selecting different waveform generators, it can perform half sinusoidal wave, sawtooth wave, or trapezoidal wave.

Technical Specifications

Model SKT50 SKT100 SKT200 SKT300 SKT500 SKT1000 SKT1500
Table size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Maximum Specimen Weight(Kg) 50 100 200 300 500 1000 1500
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 100 100 100 60 50 50 50
Pulse Duration (ms) half sine 30~1 30~2 30~2 20~3 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 12~6 12~6 12~6 12~6 12~6 12~6 12~6
Machine Dimension(cm) 82x90x195 120x105x245 130x120x260 150x130x260 200x160x300 230x180x310 250x250x310
Controller cabinet Dimension(cm) W55 x D50 x H80
Machine Weight(Kg) 1050 2000 3200 4200 8500 15500 21500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL

Application Standards

GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL


Application Industry

Aviation, Aerospace, Vessel, Military industry, Consumer Electronics, Automobile, Household Appliances, Display Device etc.


Features

  • User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
  • Half sine, square waveform shock pulse programmers.
  • High rigidity shock tables.
  • A full range of safety features.
  • Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock.
  • Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation.

Shock Test System For Battery And Electronics With Payload 30kg Meet ISTA Standard


Warranty: 12 months after installation, lifelong time maintainance.

Certificate: China official Third-party Calibration Report / CE Certification

Our Services

Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM,Design service,Buyer lable




Detailed picture​:

Shock Test System For Battery And Electronics With Payload 30kg Meet ISTA Standard

Shock Test System For Battery And Electronics With Payload 30kg Meet ISTA Standard
